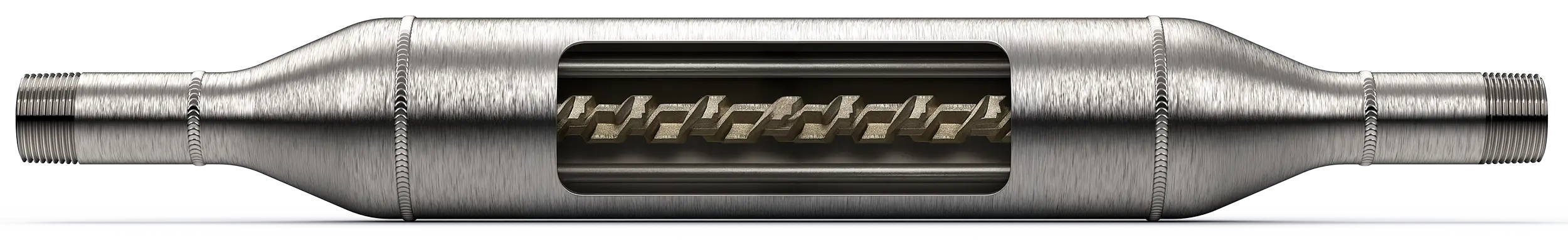

The catalytic alloy core changes the structure of hardness minerals, forming soft crystals that stay suspended instead of bonding to pipework or heat-transfer surfaces.
Magcat
Industrial & commercial scale prevention system
FOR POINT-OF-ENTRY
When scale threatens performance, prevention pays for itself
Protect boilers, chillers, and process systems from limescale and corrosion — without chemicals, power, or maintenance. Designed for the most demanding industrial and commercial applications, Magcat delivers long-term, chemical-free protection that keeps your systems efficient, reliable, and compliant.
FOR POINT-OF-ENTRY
WRAS Approved
Reg 4 compliant
UK manufacturer
GSA verified
10-year warranty
50 years of R&D

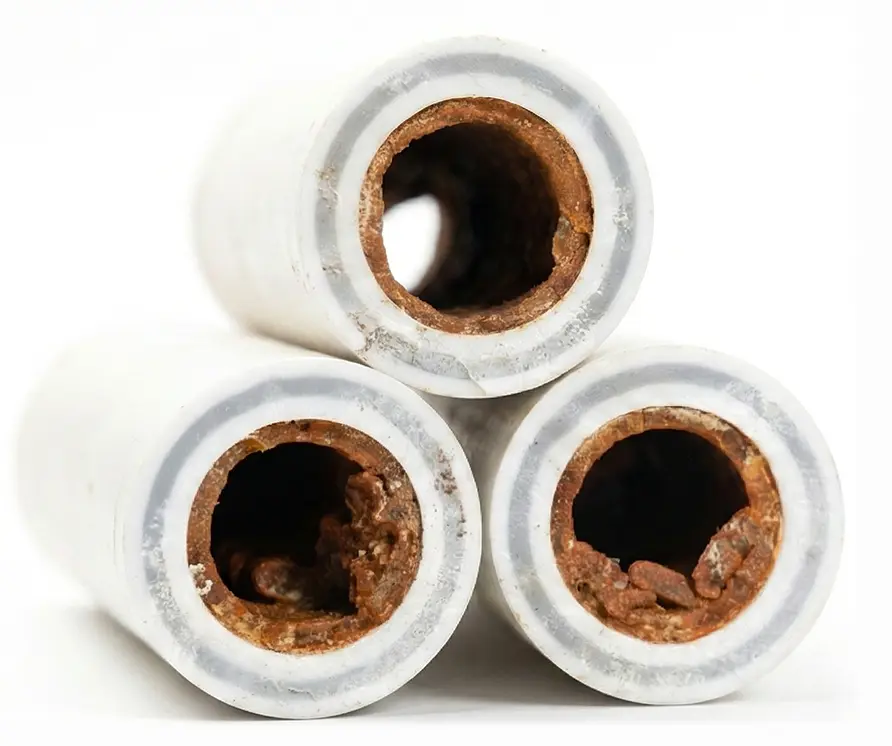

The real cost of scale
Scale buildup restricts flow, accelerates corrosion, and reduces heat transfer efficiency
In large-scale heating and cooling systems, just 1 mm of limescale can increase energy use by up to 7%
In hard water areas over 150ppm, unprotected assets can begin to lose efficiency in as little as 6 weeks
Left untreated, it leads to unplanned shutdowns, pressure losses, and higher maintenance costs
In 24/7 operations like hospitals, factories, and process plants, those small efficiency losses compound quickly — costing tens of thousands each year in wasted energy
How Magcat works
As water flows through Magcat, its dual-treatment technology delivers magnetic and catalytic scale prevention in one integrated process.
Catalytic transformation
Magnetic stabilisation
A surrounding magnetic array stabilises these crystals, strengthening the treatment effect even under extreme or variable water conditions.
Scale control & system protection
Together, these processes prevent new scale, gradually reduce existing deposits, and maintain consistent energy performance across potable, processed, recycled, and wastewater streams.

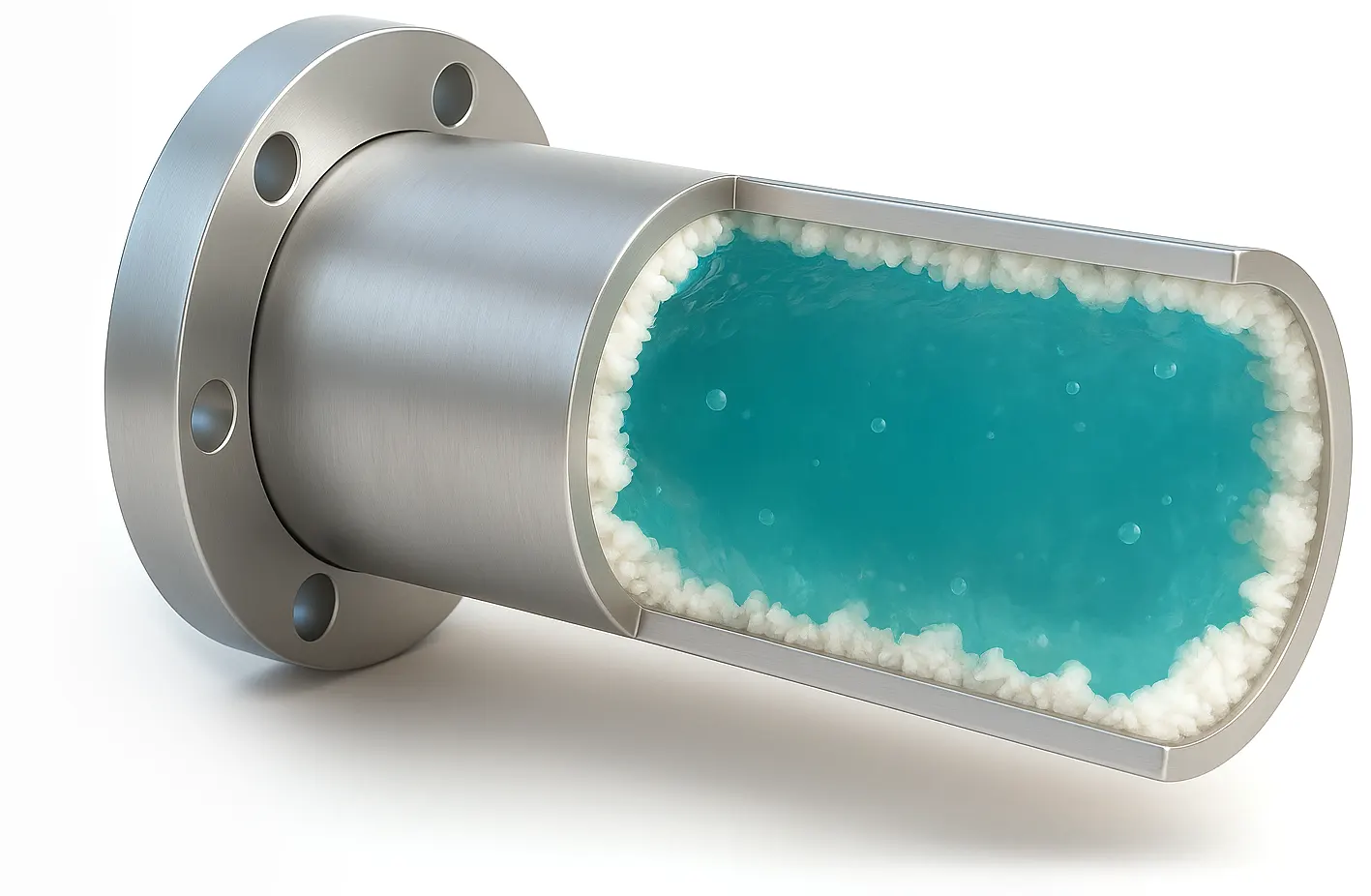

Untreated water
Scale forms as crystals that stick to surfaces and build up as hard deposits

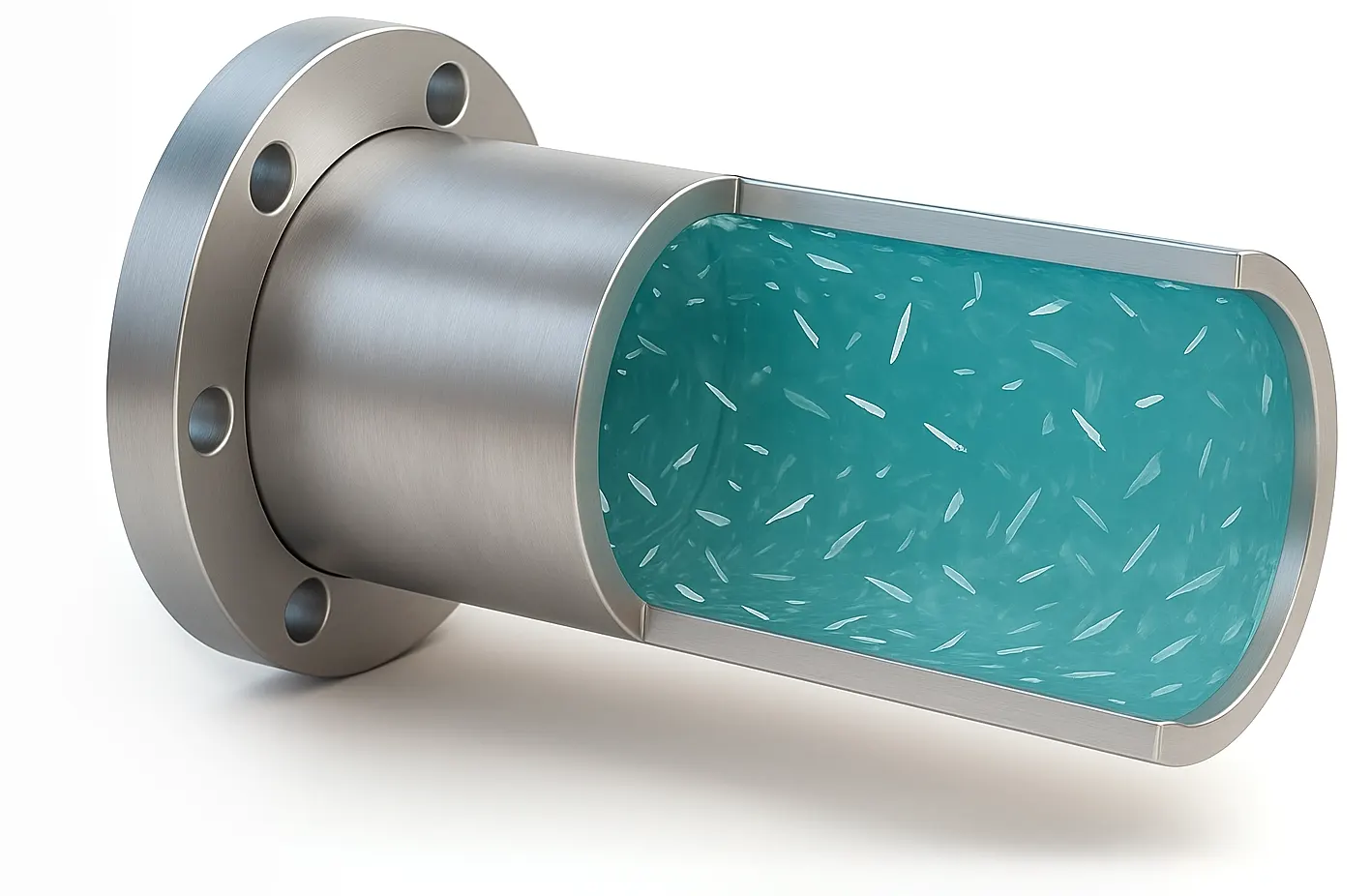

Treated water
Scale forms as crystals that flow freely and do not attach to surfaces
Technical advantages
CARBON-SAVING SOLUTION
Cleaner heat exchangers and boilers improve energy efficiency
GREEN TECHNOLOGY
No chemicals, dosing, consumables or discharge and 100% recyclable
STOPS SCALE FORMATION
Prevents limescale deposition inside pipes and equipment
REDUCES CORROSION
Protects infrastructure and extends asset life
NO MAINTENANCE & LONG-LIFE
Once installed, units operate for decades
PROVEN TECHNOLOGY
Trusted globally in industrial, commercial, and residential systems
Proven performance by application
Manufacturing / Industrial cooling – Thai Honda
Pressure loss reduced from 68% → 45%. Pump power use cut by 6.6%. Existing scale removed; efficiency restored.
Oil & gas / Offshore compression – ONGC
Cleaning interval extended from 65 → 163.5 hours and 172 → 367 hours. Downtime and chemical use significantly reduced.
Pharmaceutical / Healthcare – Pfizer UK
Annual savings of £13,000 in labour and chemical costs. ROI achieved within six months.
Each installation confirms what decades of testing have proven — Magcat delivers measurable, lasting results even in the harshest environments.
Compare the difference
| Treatment type | Capex cost | Opex cost | Servicing requirement | Downtime risk | Environment impact | Lifespan |
|---|---|---|---|---|---|---|
| Magcat | Moderate | None | None | None | None - 100% recyclable at end of life | Up to 20 years |
| Chemical dosing | Low | High | Regular + handling | Yes | Chemical discharge + plastics | Consumed immediately |
| Water softener | High | Moderate | Salt refills and annual servicing | Yes | Chloride discharge + plastics | 10 years |
| Descaling | None | High | Regular cleans | Yes | Energy waste | None - equipment lifespan compromised |
ROI & sustainability impact
Magcat pays for itself through energy savings, reduced maintenance, and longer system life.
Magcat applications
Commercial buildings
Leisure facilities
Hotels
Industrial processing
Healthcare
Property development
Manufacturing
Food & beverage
Schools & universities
Agriculture
HVAC & cooling towers
Maritime
Independent validation
With a service life exceeding 25 years and thousands of installations worldwide, Magcat is the proven choice for non-chemical water softening. Our technology is backed by over 50 years of research and explicitly verified by the US GSA, with additional scientific validation from the University of Reading and Brunel University. Whether for potable or process water, Magcat offers a reliable, scientifically confirmed solution.
CERTIFIED BY
PROVEN BY
British engineering & manufacture
Magcat is designed and manufactured in the UK to meet the highest standards of performance and durability. Each unit is built from marine-grade stainless steel and WRAS-approved catalytic alloy components, engineered specifically for industrial and commercial water conditions.
Production, testing and quality assurance are all handled domestically, ensuring traceability and consistency from end to end. Every Magcat is supported by Evolve Water’s UK-based technical team and installer network and backed by a 10-year pro-rata warranty.
Technical snapshot & downloads
Treatment type: Dual (magnetic + catalytic)
Connection range: DN15–DN400 (½″–16″)
Operating pressure: Up to 16 bar
Temperature range: 0–100°C
Construction: Stainless-steel housing with catalytic galvanic alloy core
Warranty: 10 years (pro-rata)
Service life: 25+ years
Pressure drop: <2% when correctly installed
Downloads:
Frequently asked questions
How long does Magcat last?
Magcat has a minimum service life of 25 years and is supplied with a 10-year pro-rata warranty. Many units have operated in the field for decades without replacement or maintenance.
Does it remove hardness from the water?
No – Magcat doesn’t remove calcium or magnesium ions but changes how they behave. The catalytic process prevents them from bonding to surfaces, keeping them suspended so scale can’t form.
Will Magcat reduce existing scale?
Yes. Over time, it gradually dissolves and loosens existing scale deposits, particularly in systems where flow is consistent and temperature is stable.
Does Magcat affect water chemistry or compliance?
No. It doesn’t add or remove any substances, alter pH, or change mineral content, so it maintains full WRAS and Reg 4 compliance.
Can it be used with other treatment systems?
Yes – Magcat can be installed alongside filtration, UV or softening systems if required. It’s completely passive and doesn’t interfere with other processes.
Where should it be installed?
Ideally close to the point of entry or before the plant equipment you want to protect (e.g. boilers, chillers, or heat exchangers). It can be installed horizontally or vertically.
What maintenance does it require?
None. Once installed correctly, Magcat operates continuously without power, calibration, or servicing.
